AfricaSUPER-RAIL ECO BW H2-W4 (bridges)
- Description
- Technical data
- Product view
Description
A very efficient and economical H2 road restraint system for bridges.
The Super-Rail Eco BW consists of an upper beam to prevent heavy vehicles from tipping over and a lower beam dedicated to light vehicles.
Technical data
SPECIFICATIONS:
Tested length: 60m in H2 level.
CE mark N° : 0051 - CPR - 2010
Available connection: Super-rail Eco (H2-W4-B)
Post: C125 on base in S235 JR steel;

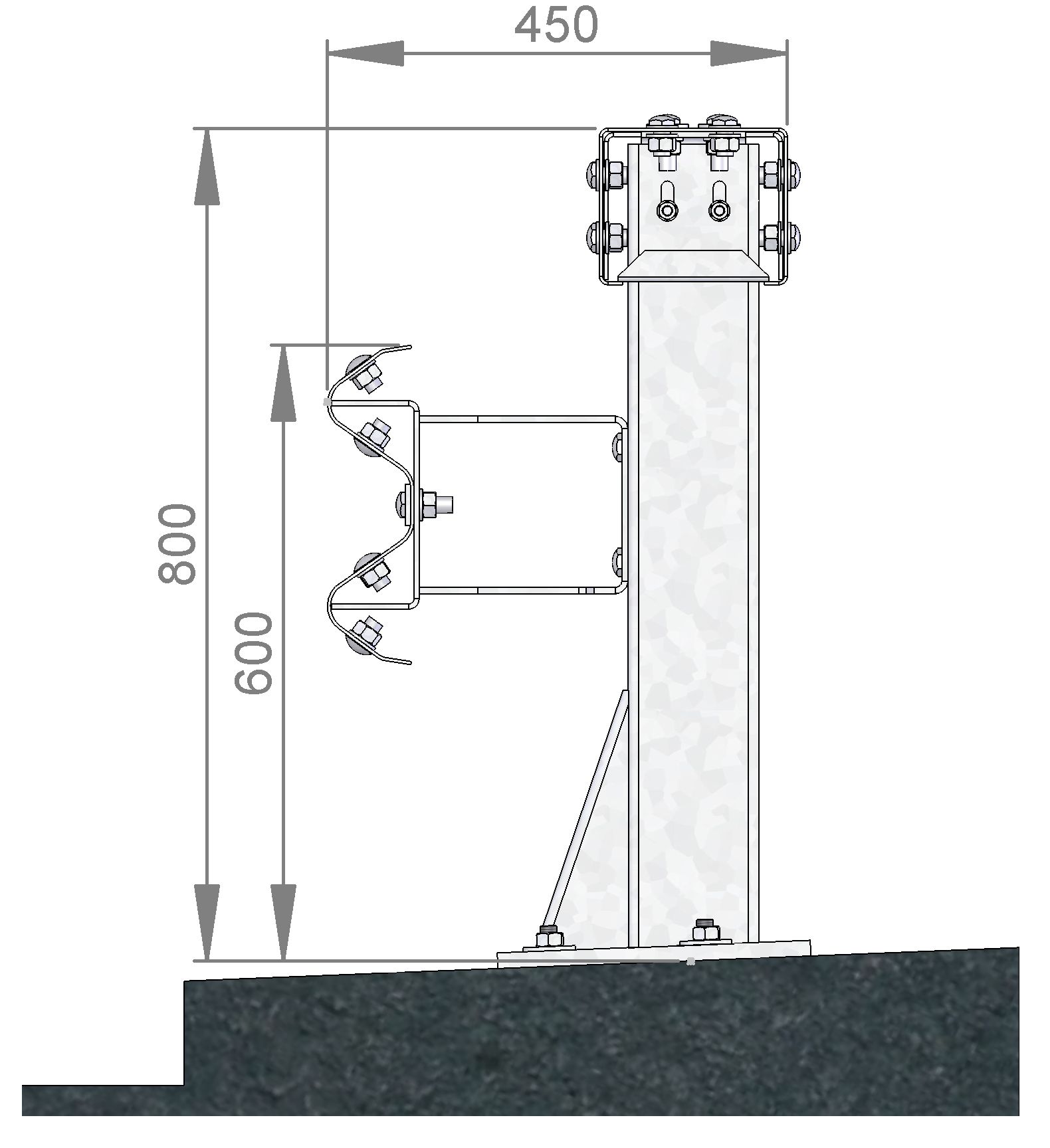

Height: 790mm
Beam profile: AD profile in S235 JR steel
Weight per lm: 45,5 kg

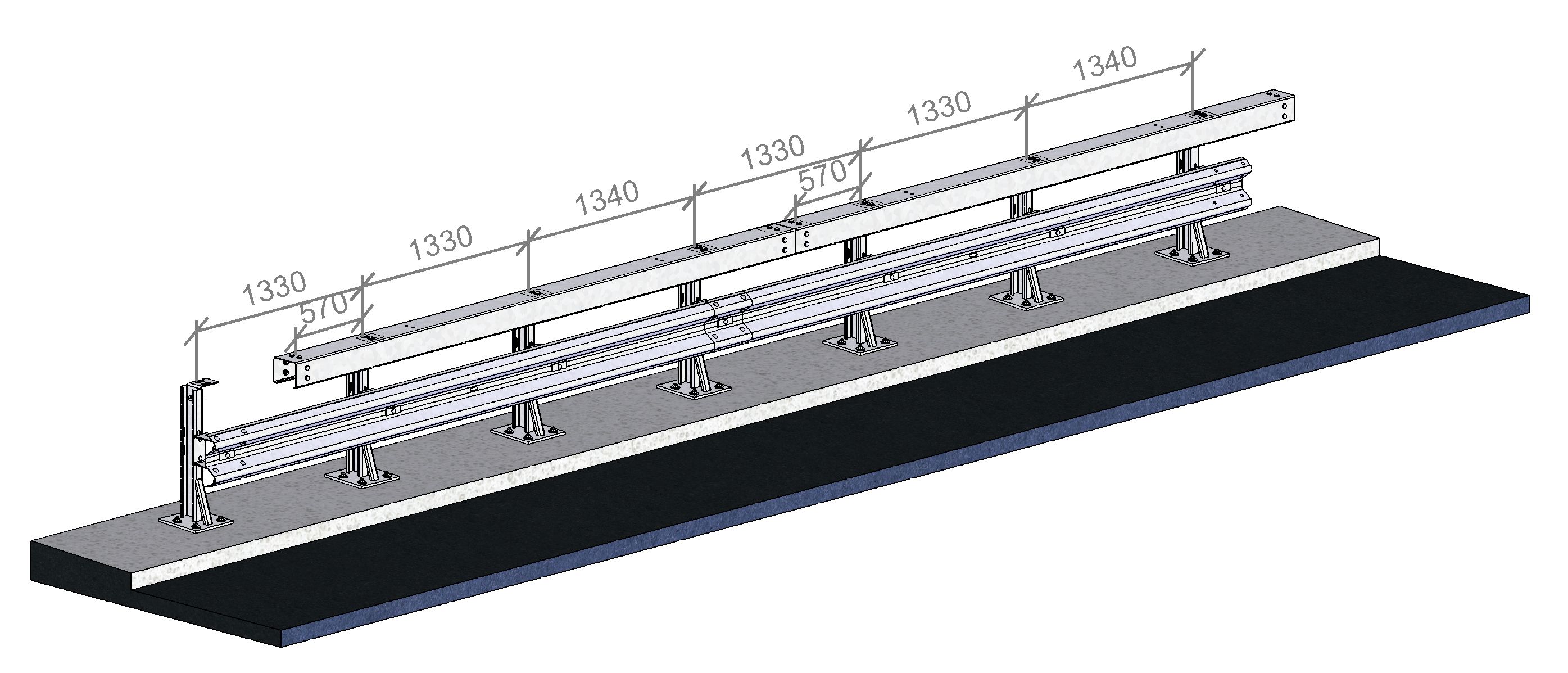

Post spacing: 1.33 m

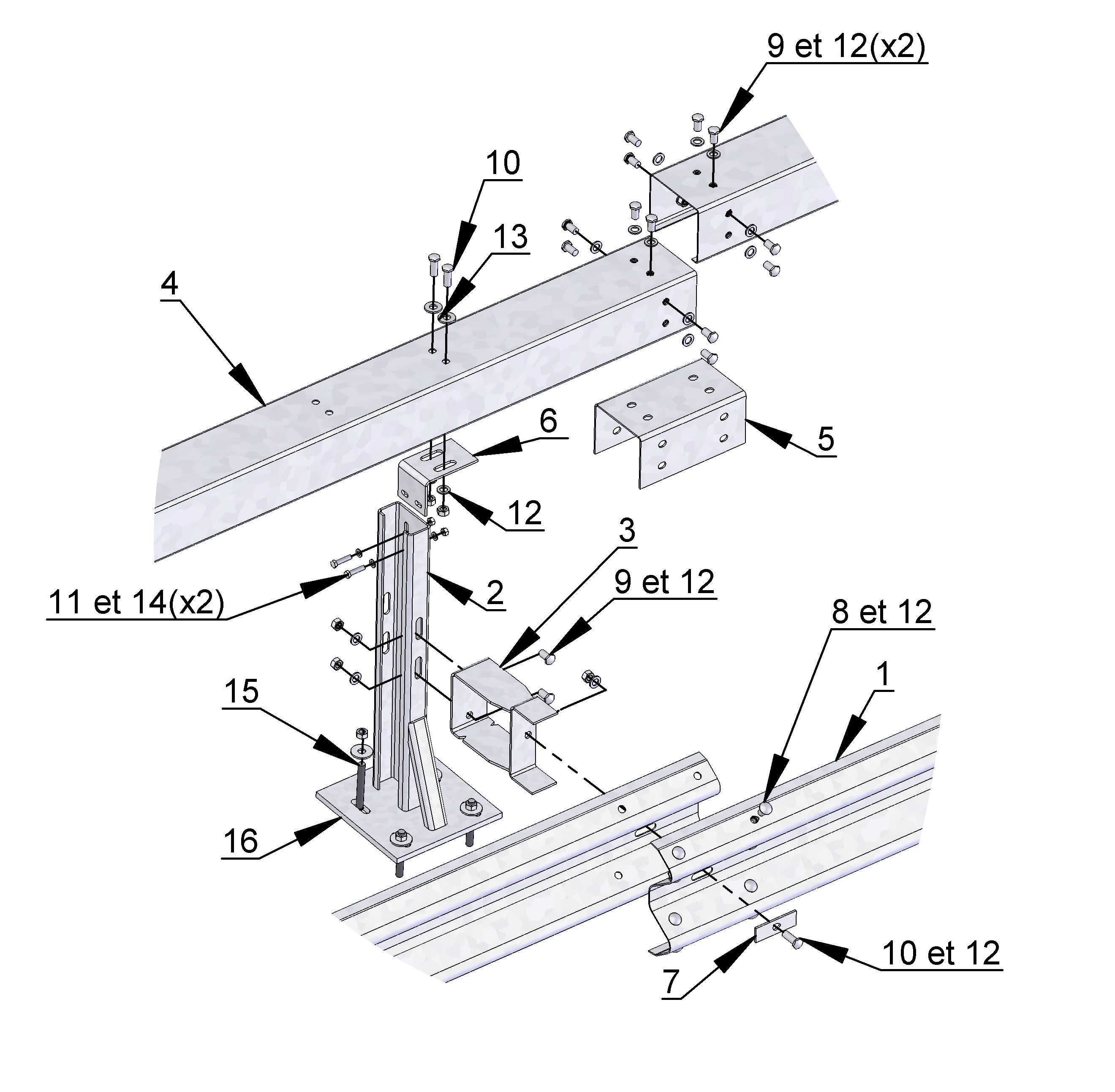

Product view
