SUPER-RAIL - BW - H2-W4 (bridges)

Description

The highest containment level for bridges.

The Super-Rail BW consists of an upper beam to prevent heavy vehicles from tipping over and a lower beam dedicated to light vehicles.
This system has been tested on bridges.

Technical data

SPECIFICATIONS:

Tested length: 36m in H2 level.

CE mark N°:  0119 - CPR - 2010

Available connection: Super-rail (H2-W4-A)

Post: C125 on base plate in S235 JR steel;

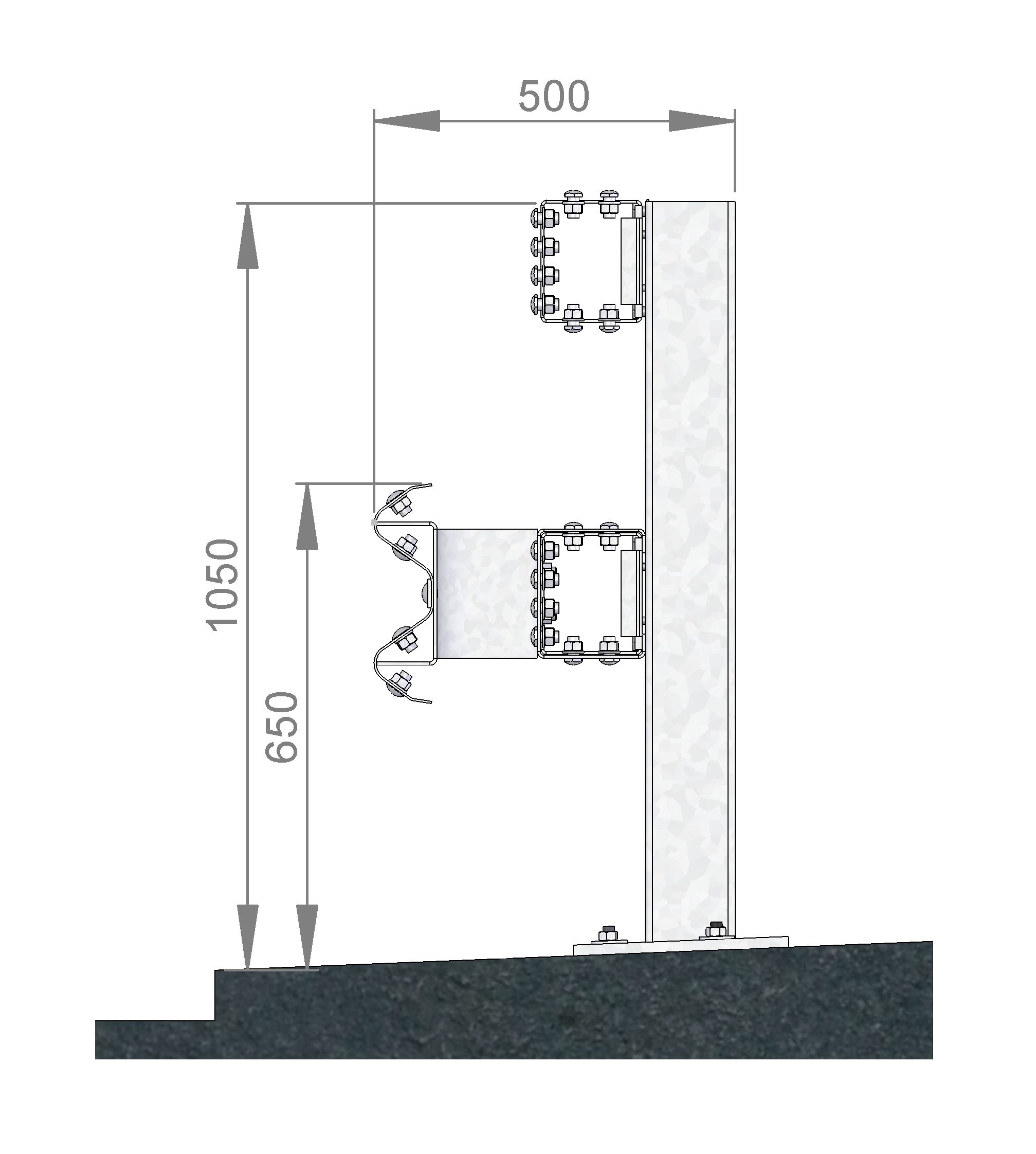

Height: 1040mm

Beam profile: AD profile  in S235 JR steel

Weight per lm: 69 kg

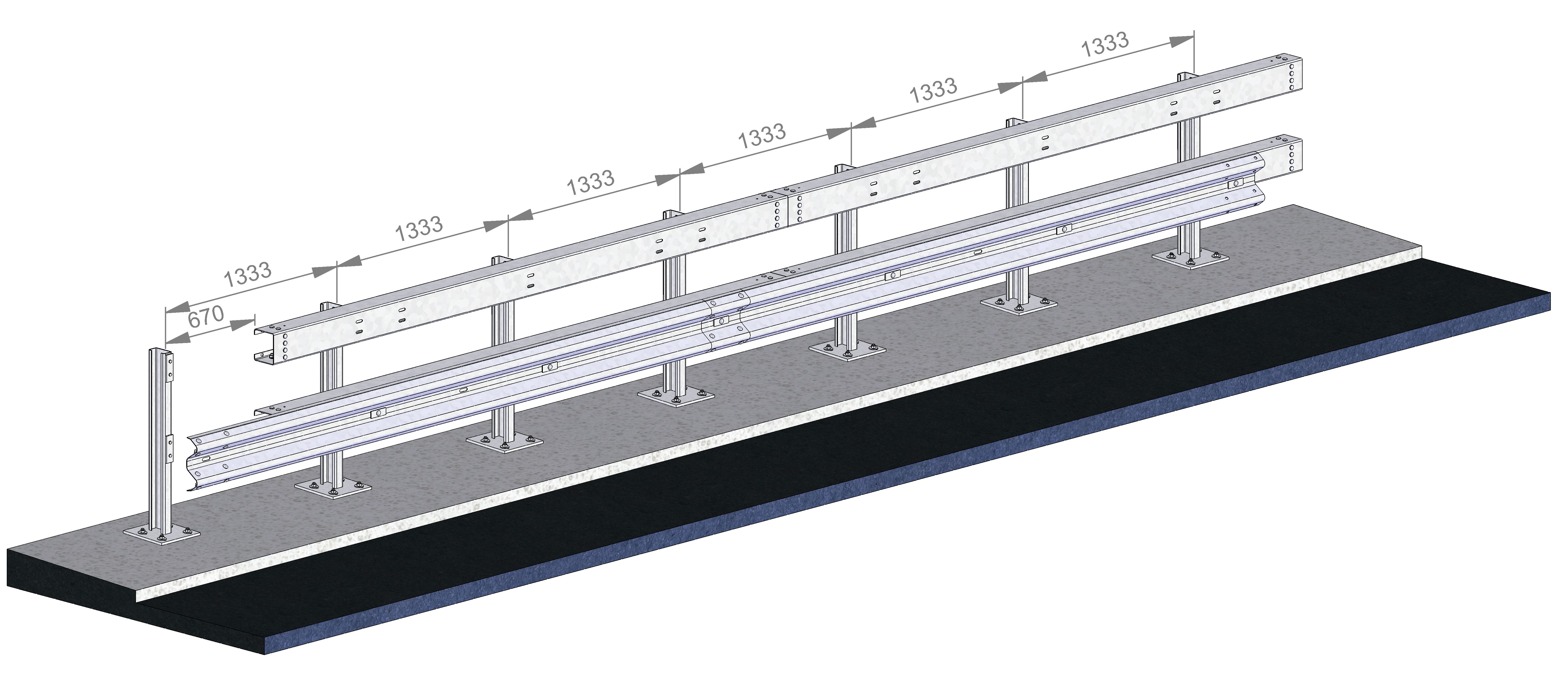

Post spacing: 1.33 m

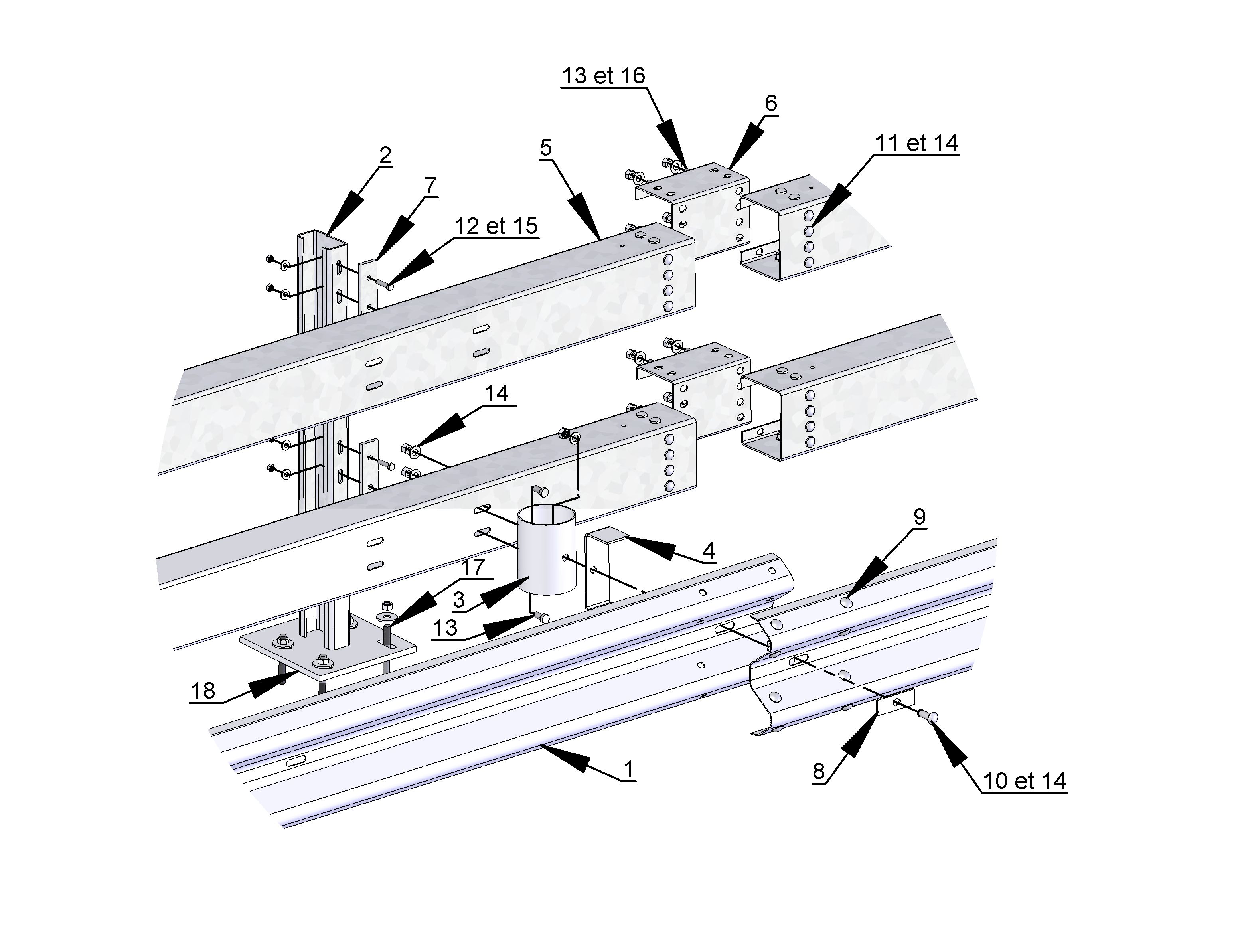

Product view
