SOLOSMART® 110

Innovative shock absorption technology tested according to EN1317/1-3 and CE certified according to EN1317/5

Description

The EAP system absorbs the energy released on impact while the center panels slide individually on the ground-anchored monorail. The dual monorail allows the attenuator to remain intact, safely redirecting the stricken vehicle and preventing any lateral or vertical movement of the crash cushion.

After the crash, SOLOSMART® is highly reusable. Its simple and innovative design allows for consistent re-use and low spare parts costs.

Quick and easy installation on concrete

Possibility of fixing directly on asphalt (see installation manual to download)

Fixation on monorail base, without cable or chain

Low cost of spare parts replacement

Technical data

SPECIFICATIONS :

• System delivered pre-assembled (except the cover)
• Quick and easy installation on concrete or asphalt
• Economical system due to the EAP technology (lightens the system)
• Connection to steel or concrete guardrails
• Low ground occupation
• Fixation on two independent rails, without cable or chain
• Crash cushion tested according to EN 1317/1-3 and CE certified according to EN 1317/5
• Other reusability of the majority of the elements after impact, low replacement cost of the spare parts
• Cover available in two colors: grey/yellow. Possibility to change the color of the reflective strips.

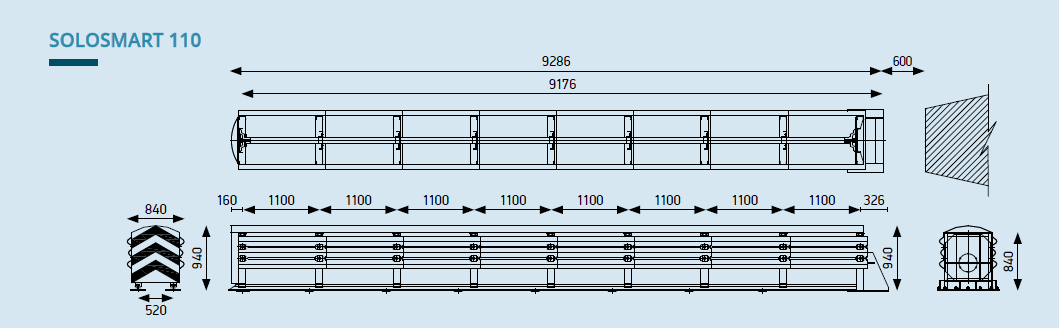

Dimensions : L= 9200 mm / W = 840 mm / H= 940 mm

Weight : 1300kg
