SOLOTECH® - ITPC H2

Reference: SOLOTECH®

emergency opening of 4 meters for median crossings

Description

SOLOTECH®, a proprietary system from SOLOSAR, has been designed to make it easier for the operator to use and to improve the safety of users.

Thanks to its 2 arms of 20 lm, it allows the management and the fast deviation of traffic flows, in case of accident, works, ...

SOLOTECH® is a emergency opening for median crossings.

The central beams have been lowered and optimized to avoid any vehicle embedding.

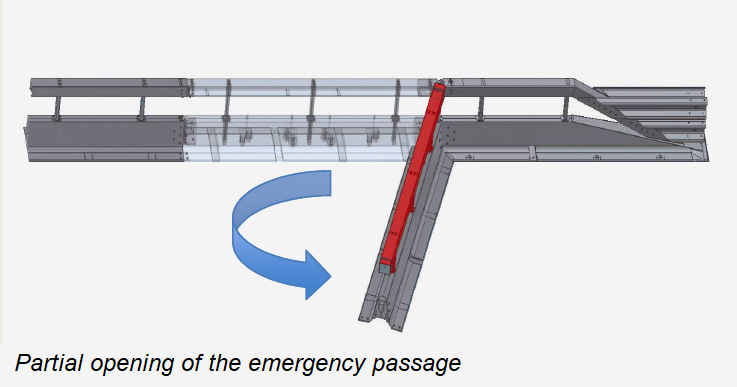

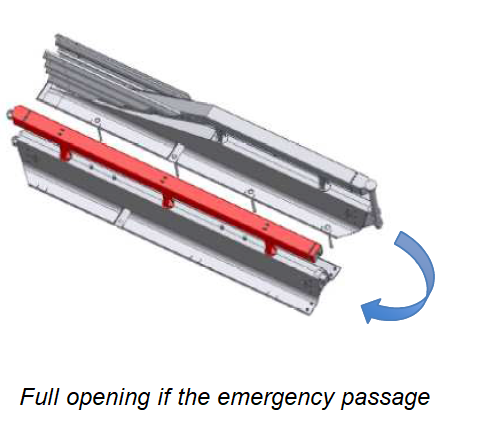

Its 2 emergency passages of 4 lm facilitate the access of intervention vehicles (firemen, ambulances, police, motorway company, ...) thanks to its instantaneous opening system.

Similar device of level H1 : SOLOGUARD®.





Technical data

SOLO TECH H2® has been tested in accordance with the European standard EN 1317-2 at level H2 (restraint of a 13-ton bus, launched at 70 km/h at an impact angle of 20°).

The basic system is implanted on a total length of 48 ml and consists of two anchoring elements (ends), two swivel arms of 20 m length. It includes an emergency passage of 4 lm that can be opened at 45° and a central locking element.




TECHNICAL INFORMATION

Total length of the device : 49,33 m
Useful length of the system: 40.8 m to 48.8 m
Width of the system: 700 mm
Installation height: 92 cm




CE marking : 1826-CPD-10-02-12 of 26/10/2011

Product view
