ULTRAGUARD™

ULTRAGUARD™ : First highly retroreflective marking system applicable on all vehicule restraint systems

What is ULTRAGUARD™?

ULTRAGUARD™ is a combination of a specially formulated water-based paint and high-reflective glass beads that can be applied vertically to all type of road restraint systems (guardrails, concrete barriers, mobile safety barriers, etc.).

It provides a glare-free, three-dimensional, continuous perception of the roadway, like an Ariane's thread, guiding road users in darkness and in bad weather, thus ensuring, better safety.

ULTRAGUARD™ provides continuous retro-reflective lines at eye-level, defining road geometry. It has been developed to be used in addition of the road marking to give the driver a full perception of the road.

MANY BENEFITS OF ULTRAGUARD™:

• Increase reaction time: it allows drivers to increase their reaction time to obstacles and dangerous driving conditions.

• Enhances depth perception and road awareness: guides drivers more effectively through changes in road direction or curves.

• Non-polluting: avoids the phenomenon of light pollution (no lighting columns, no upward reflection of light, no disturbance of the human sleep cycle or insects cycle).

• 0 accidents= operational savings: ULTRAGUARD™ makes barriers highly visible to road users in all weather conditions. With a reduction in accidents, there is no need to frequently replace road restraint systems. Interventions are limited and the cost is reduced.

• High visibility: it allows high visibility of curves, central islands, construction sites, tunnels, unlit roads and especially in adverse weather conditions.

• Durability: ULTRAGUARD™ is a low profile marking protected from the wear and tear experienced by road marking. The glass beads protect the paint and increase the durability of the marking.

To sum up: there is no other pavement delineation system on the market today at a comparable price that offers the same high level of safety that drivers need.

An exclusive partnership between Potters and SOLOSAR

A QUICK AND EFFICIENT INSTALLATION

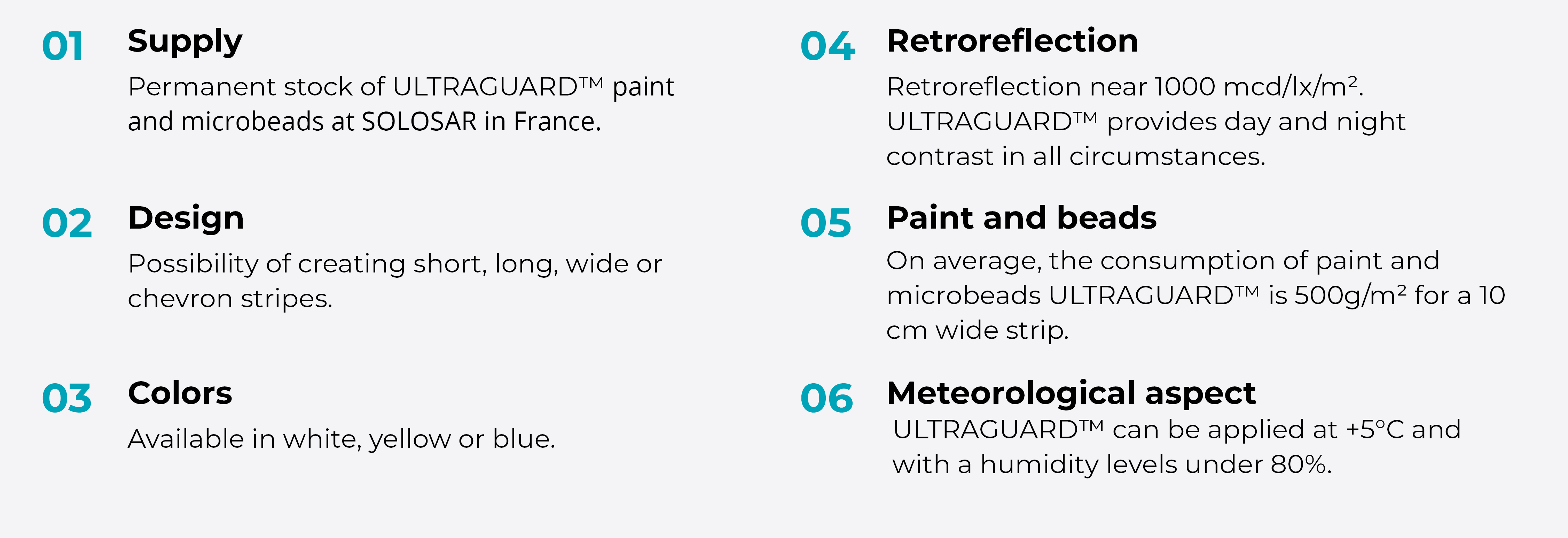

TECHNICAL DATA:

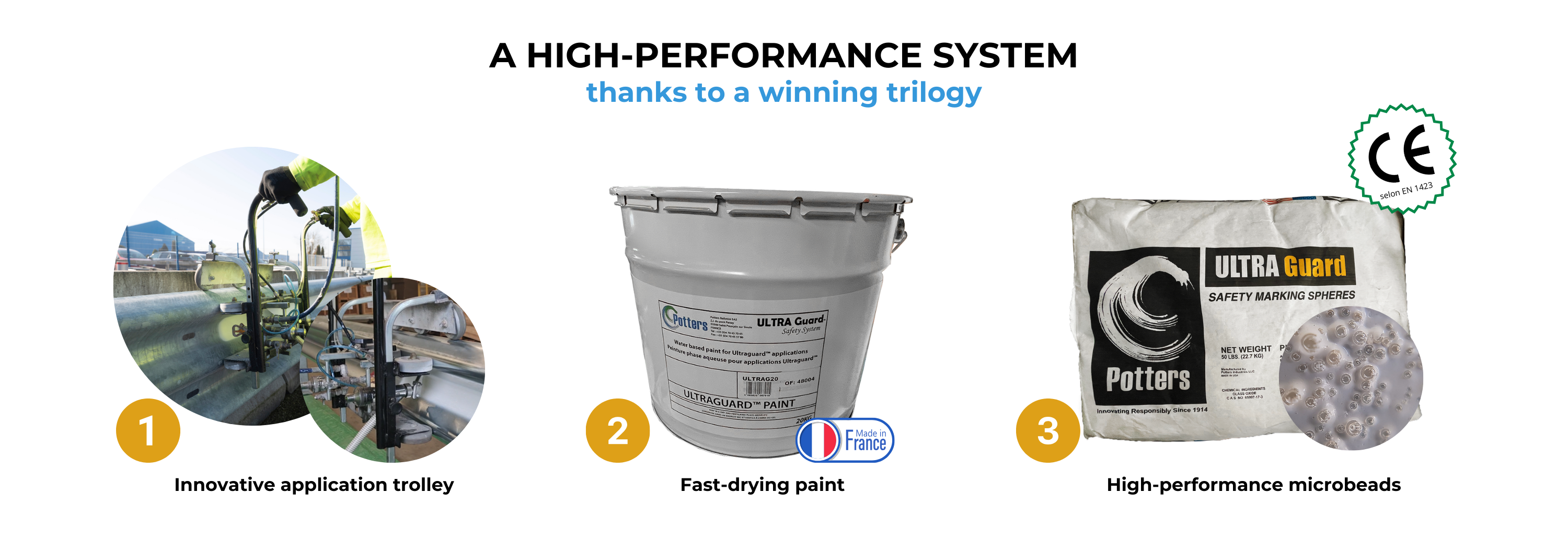

A SUCCESSFUL COMBINATION:

INSTALLATION EQUIPMENT:

The application is done with a unique and patented trolley (EN 2.342.292) and can be hung on any type of vehicle restraint system.

It allows the simultaneous application of paint and glass beads. The trolley can be connected to all marking machines on the market.

The possible output of ULTRAGUARD™ per hour of application is about 2 to 3 km/h.

ULTRAGUARD™ FACTORY APPLICATION:

AN APPLICATION TO A RANGE OF ROAD RESTRAINT SYSTEMS:

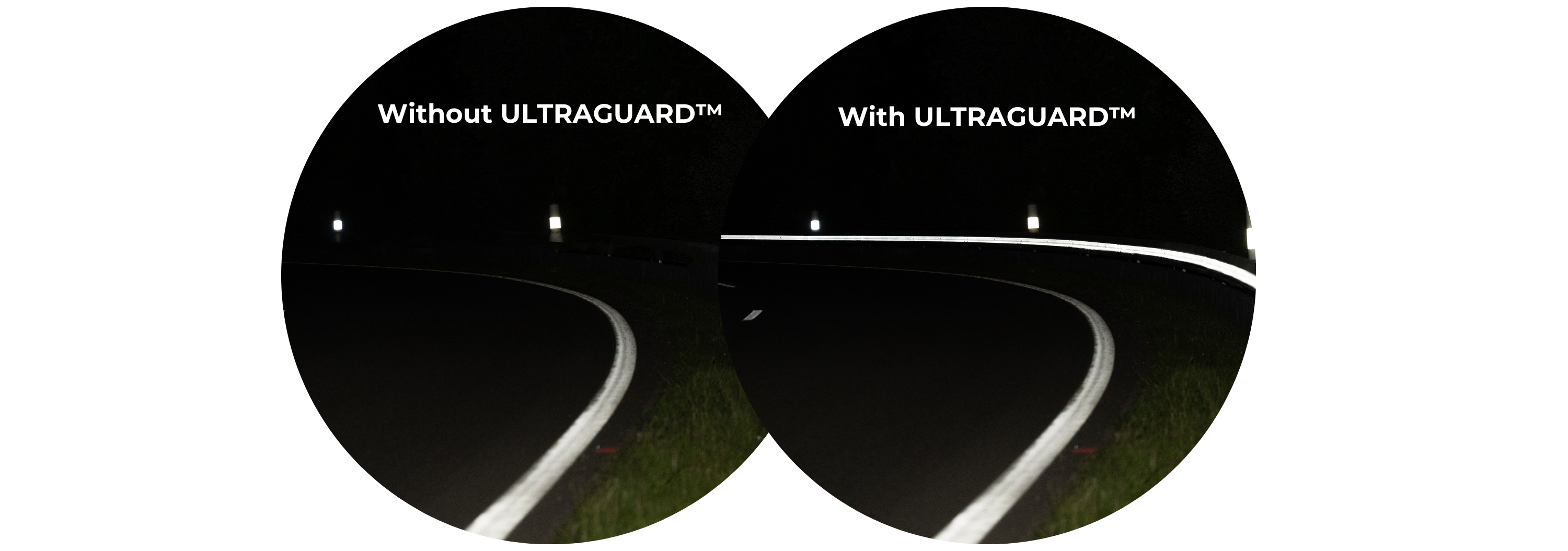

OVERVIEW BEFORE/AFTER ULTRAGUARD™ INSTALLATION:
